Generate X12 999 Last updated: 2026-11-03
Generate X12 999 with the HTTP POST Method
You can generate an X12 999 acknowledgment for an X12Interchange by using the HTTP POST method. The request body must be an X12Interchange. Execute HTTP POST to the resource URL, with the request included as application/json content and the query parameter ack to equal 999.
- URL:
https://api.edination.com/v2/x12/ack?ack=999 - Header:
Ocp-Apim-Subscription-Key: {API key} - Request: X12Interchange
- Response: X12Interchange
The response will contain an X12Interchange, encoded in application/json format, which represents the 999 acknowledgments with the original ISA and GS, where the sender and receiver had been swapped and the ISA reference number (ISA13) had been set to 1. By default all functional acknowledgments will be batched in the same interchange and TA1 will be included as per the ISA14 flag.

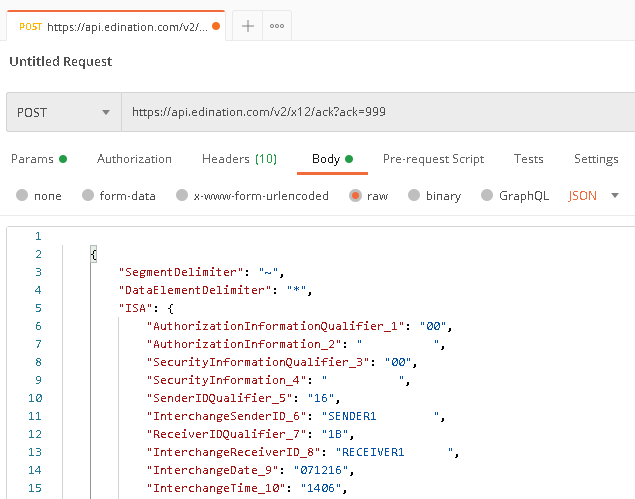

Example with Postman:

The steps above are for API v2. API v3 supports X12 only for now. On v3, generate the 999 from a raw X12 file with Parse X12 in mode 3. A 999 is the default on v3. The call counts as one operation and returns the JSON, the validation results and the acknowledgment.
curl -X POST "https://api.edination.com/v3/x12/parse?mode=3" \
-H "Ocp-Apim-Subscription-Key: YOUR_API_KEY" \
-H "Content-Type: application/octet-stream" \
-D headers.txt -o response.bin \
--data-binary @purchase-order.ediThe acknowledgment is the raw X12 in ack in the validation report, which starts at the offset in the X-EdiFabric-Offset header.
